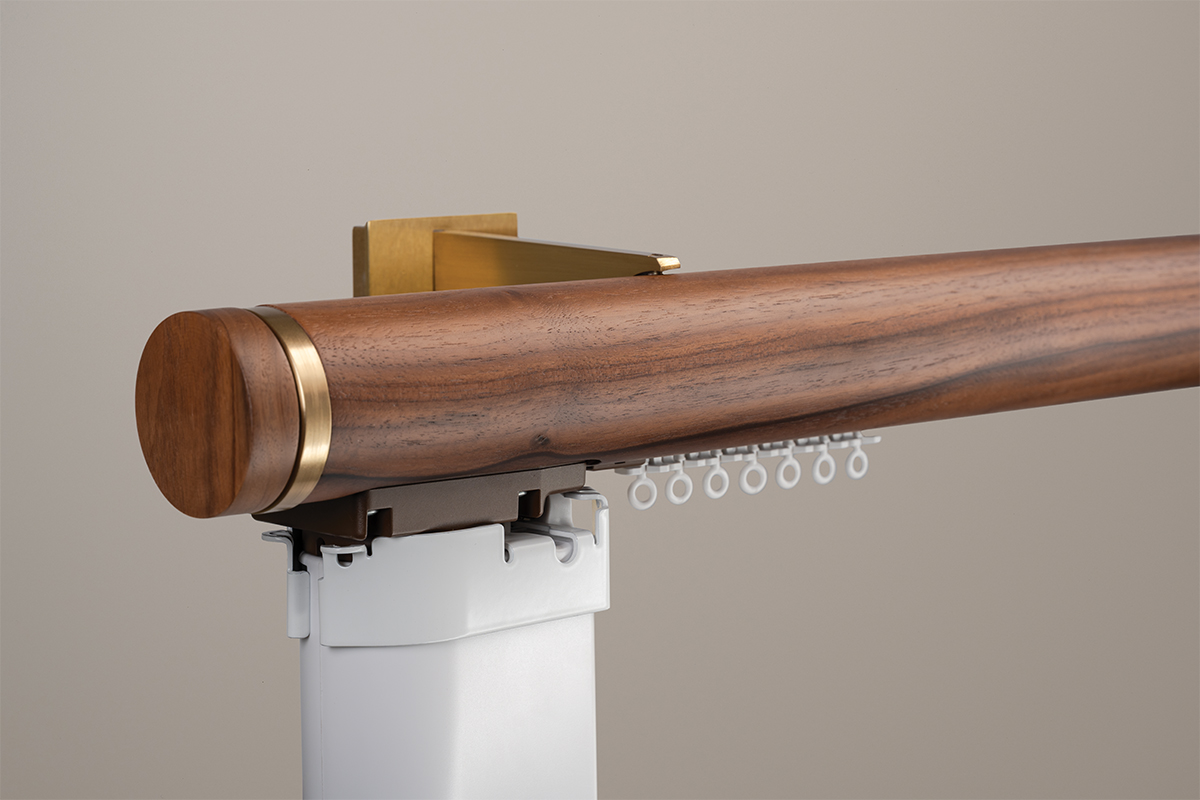

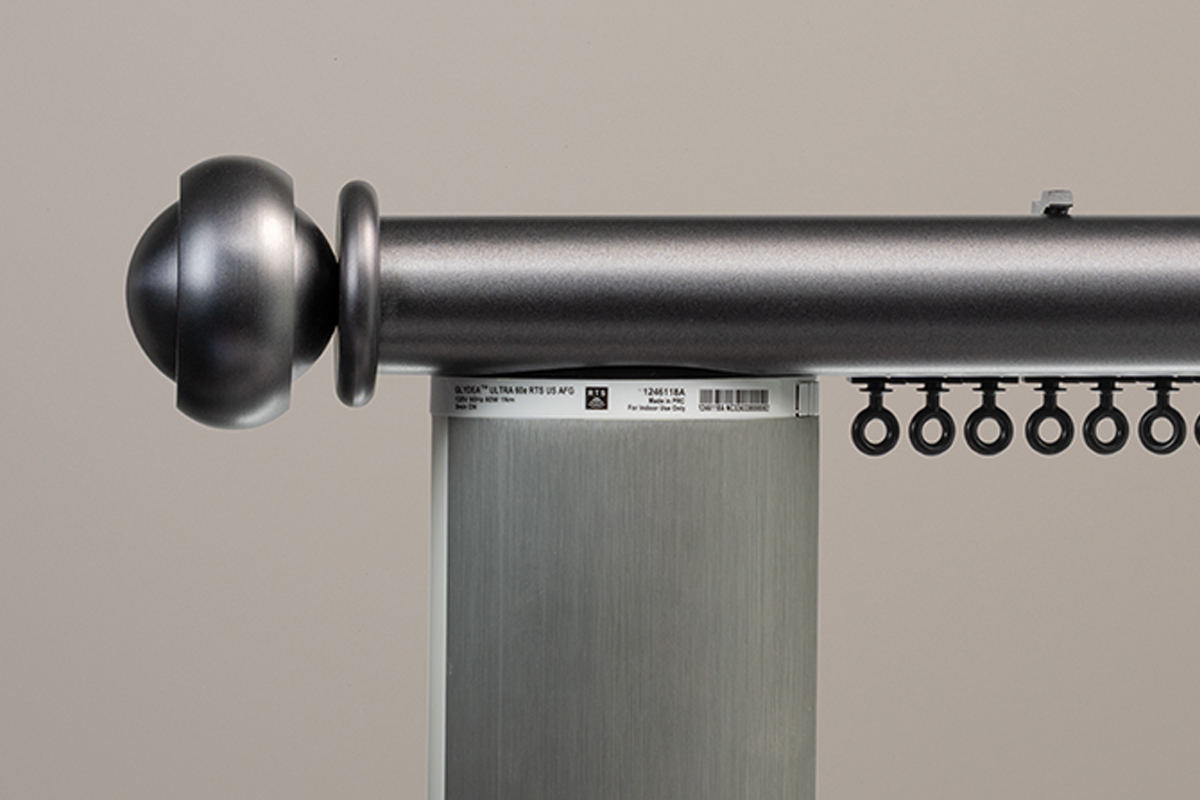

elevate
Peerless and opulent, this collection truly has no rival.
A rare, luxurious aesthetic and freedom of expression in design are balanced with the final word in functionality and control.
The world’s finest.
Leading motor options
Elevate may be specified with your choice from the leading motorised systems. This provides power and control options ranging from standalone battery powered systems to fully integrated home automation solutions. For Double pole systems, a hand drawn rear pole may be specified if preferred.
Scale

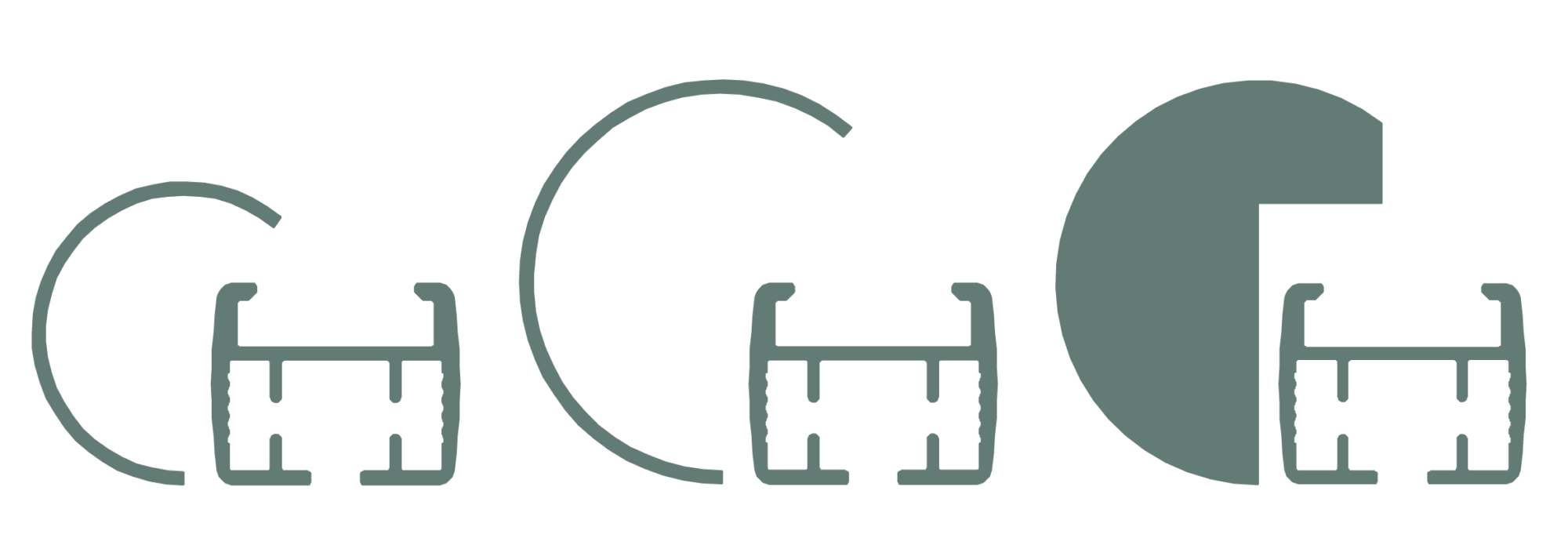

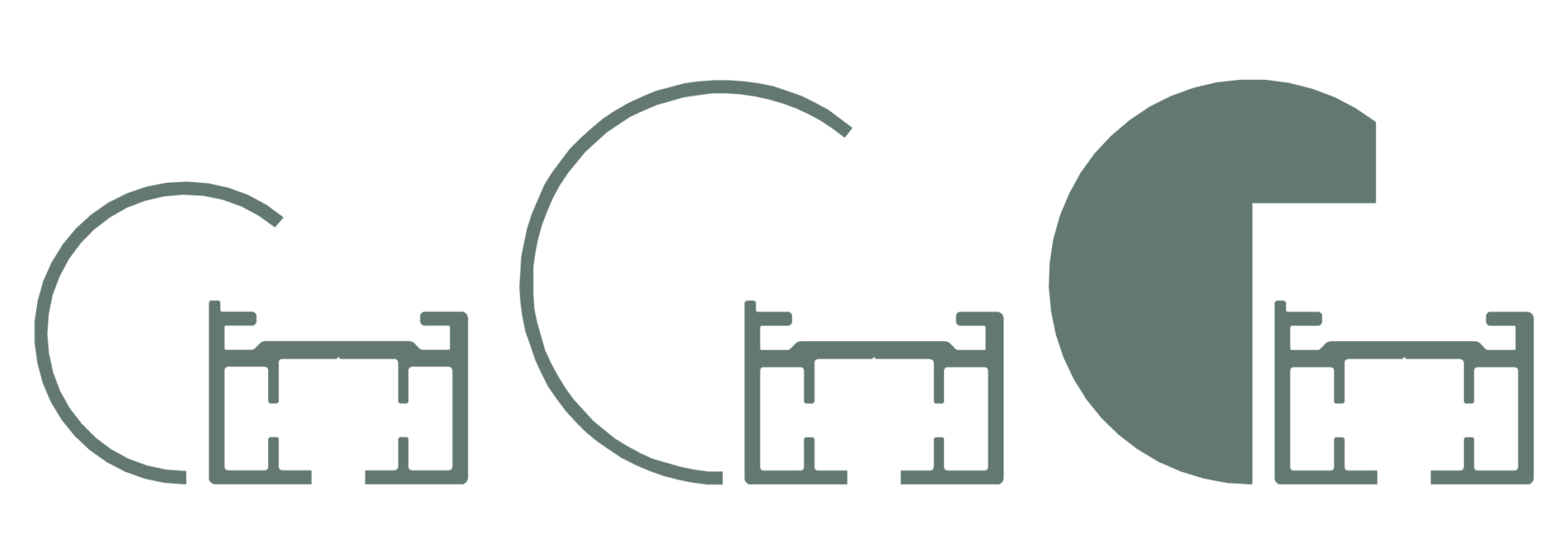

Elevate poles are available in two pole diameters, Ø38mm (1 1/2”) • 50mm (2”). Finial designs are carefully scaled to maintain the system aesthetic.
detailing

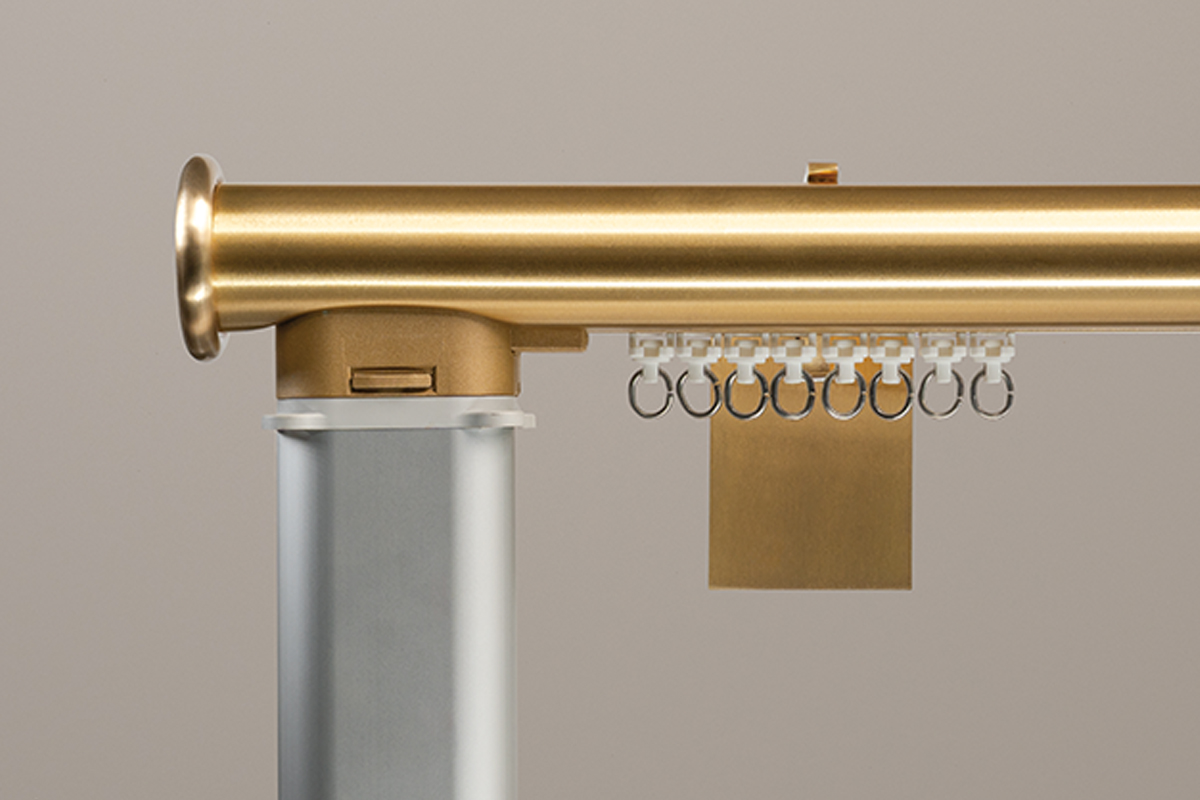

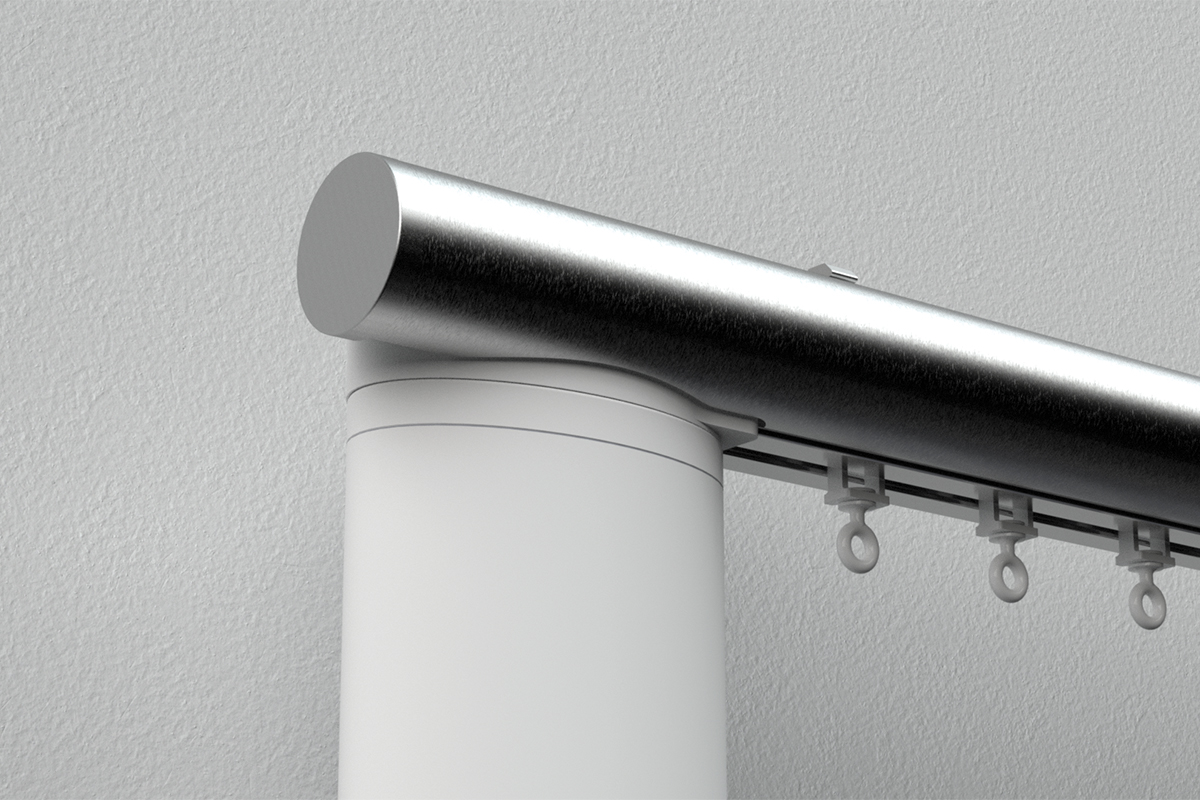

The secret of any design is in the detail. Elevate includes a complementary finish to nylon end housings, for a harmonious tonal effect.
Length

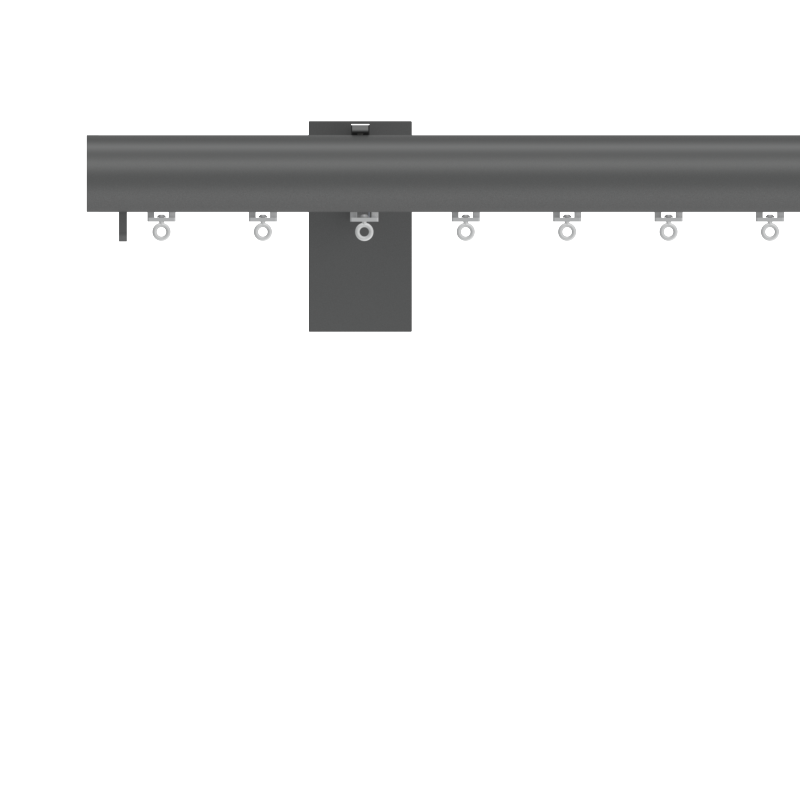

Poles can be supplied to any length↔, subject to maximum weight loadings of the selected motorised system.
function

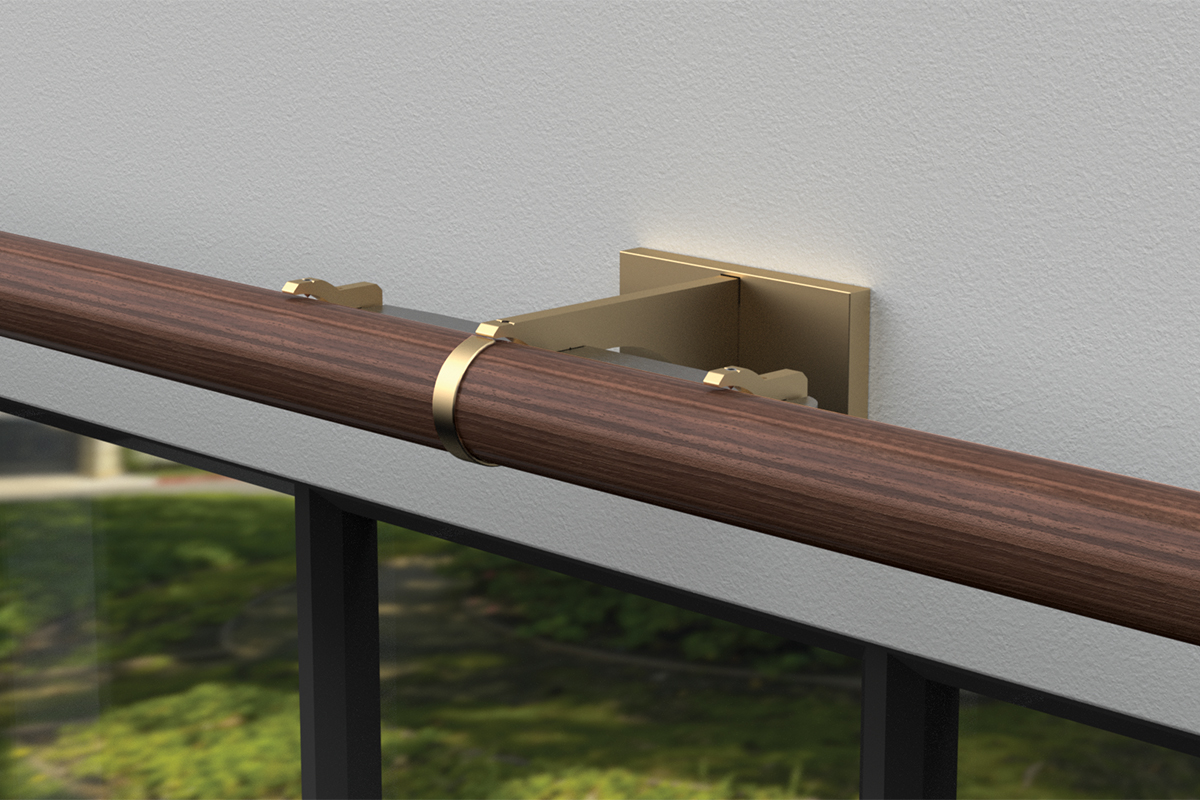

A range of bracket options have been designed to ensure simple installation, including flush fit ceiling brackets.
Bent to shape
A bespoke bay bending service is available on all diameters to allow the perfect shaped pole to fit any bay window.
modern headings
The choice of motor systems means that modern headings can be accommodated, with both Wave® and Ripplefold® styles available.

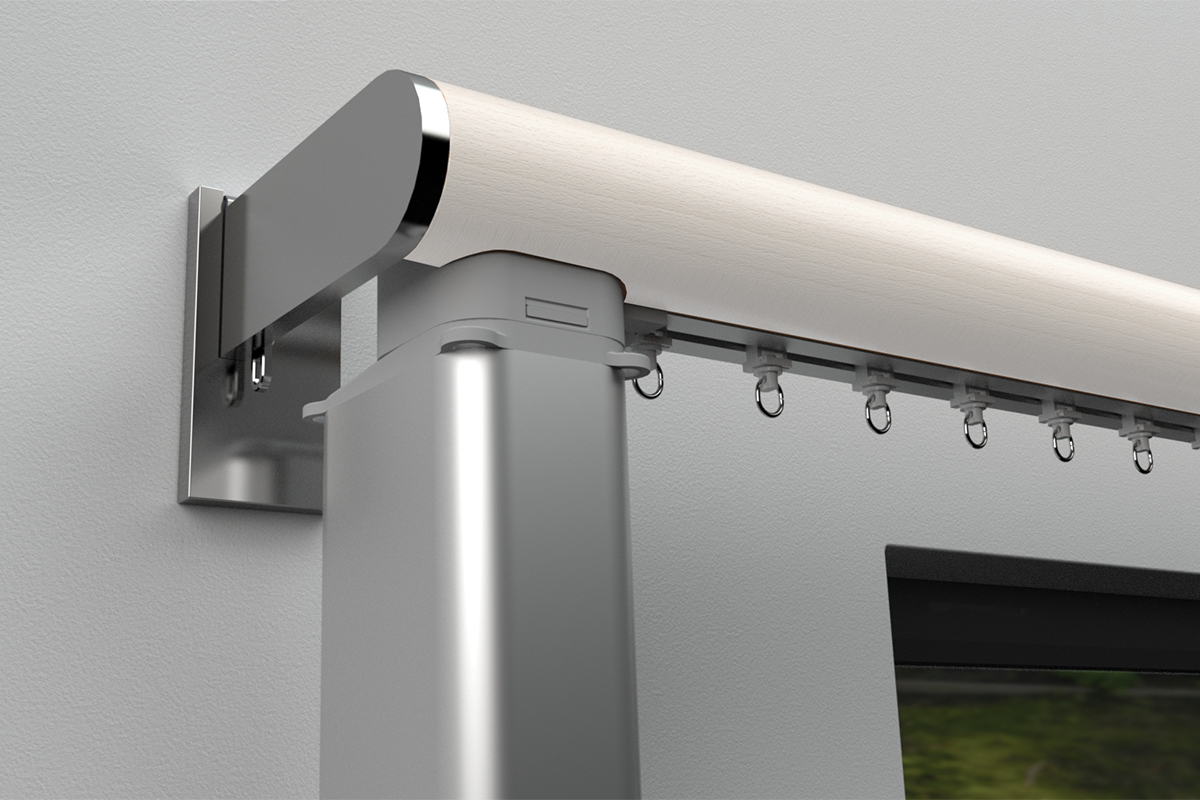

edge
Edge is the epitome of understatement, being sleek, discreet and integrated. Available in two pole diameters, Ø38mm [1 1/2”] • 50mm [2”]. The unique Edge bracket design gives a structured return to the wall for drapes and incorporates an adjustable return-to-wall hook eye.
MINIMAL AESTHETIC
Edge is the epitome of understatement, being sleek, discreet and integrate
LENGTH
Poles can be supplied to any length↔, subject to maximum weight loadings of the selected motorised system.
FUNCTION

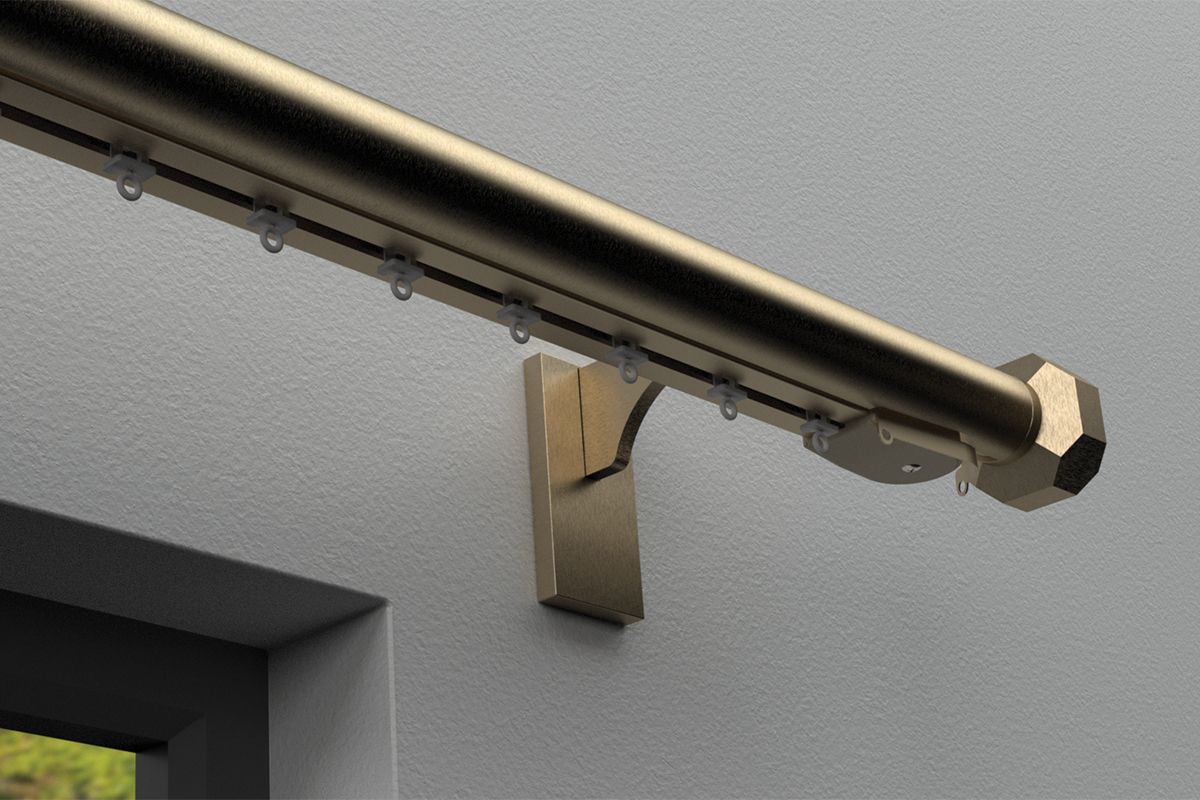

The unique Edge bracket design gives a structured return to the wall for drapes and incorporates an adjustable return-to-wall hook eye
DETAILING
Thoughtful design detailing includes internal track pulley housings painted in a complementary colour.
Learn More about
elevate
options
finishes
All poles and components may be specified in this stunning palette of colours and finishes, with a choice of coat options throughout.

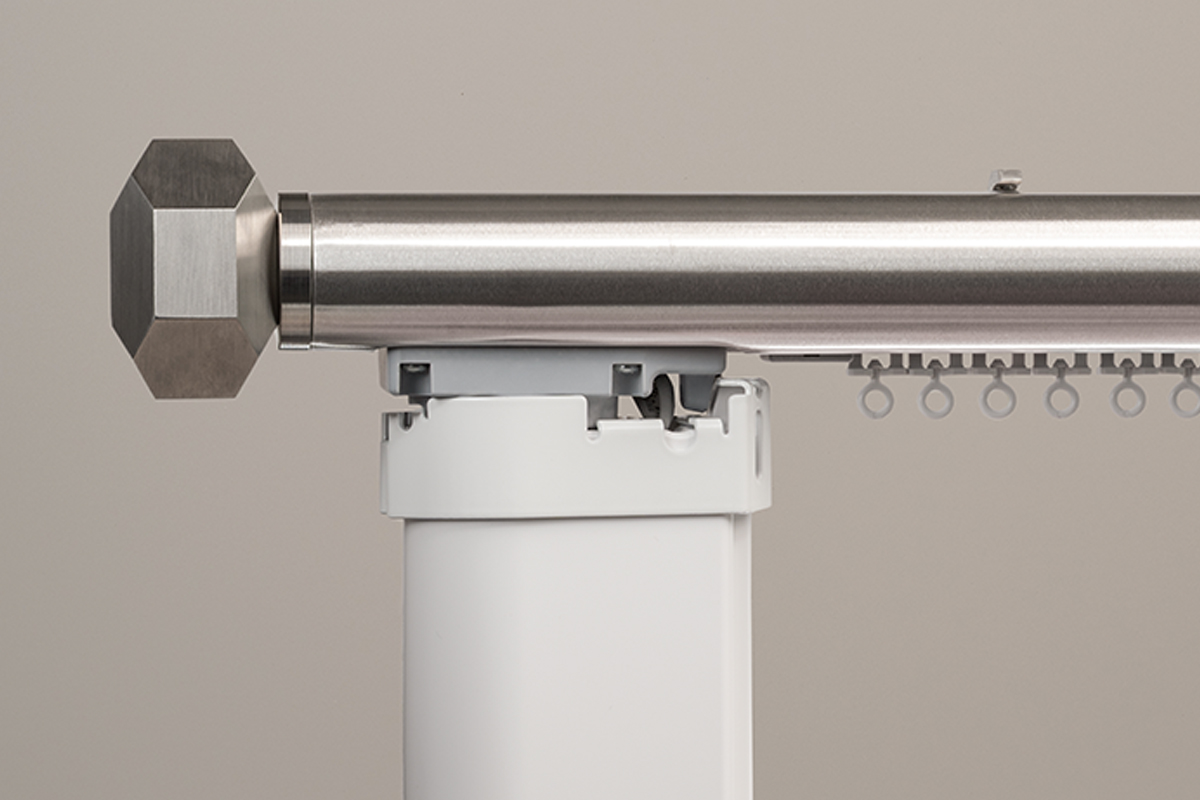

STAINLESS
A brushed stainless steel base gives an edgy feel.
- add to basketbrushed stainless
Availabilty Mio
Not available with French poles options
Availabilty Elevate
Brushed finishes not available with bends
CLASSICS
Signature translucent finishes which allow the beauty of steel to shine through
- add to basketpolished
- add to basketnatural steel
- add to basketbrass toned
- add to basketmatte brass toned
- add to basketoil rubbed
- add to basketwaxed
shades – Matte Coat
- add to basketcloud matte
- add to basketalabaster matte
- add to basketbone matte
- add to basketbarley matte
- add to basketdusk matte
- add to basketceramic matte
- add to basketcream matte
- add to basketmineral matte
- add to basketdove matte
- add to basketparchment matte
- add to basketoatmeal matte
- add to basketmillstone matte
- add to basketstone matte
- add to basketclay matte
- add to basketgrey moss matte
- add to basketslate matte
- add to basketcocoa matte
- add to basketmoss matte
- add to basketdamson matte
- add to basketsmoke matte
- add to basketframe grey matte
- add to basketlead matte
- add to basketearth matte
- add to basketburnt ash matte
- add to basketflint matte
- add to basketcharcoal matte
- add to basketraven matte
shades – satin Coat
- add to basketcloud satin
- add to basketalabaster satin
- add to basketbone satin
- add to basketbarley satin
- add to basketdusk satin
- add to basketceramic satin
- add to basketcream satin
- add to basketmineral satin
- add to basketdove satin
- add to basketparchment satin
- add to basketoatmeal satin
- add to basketmillstone satin
- add to basketstone satin
- add to basketclay satin
- add to basketgrey moss satin
- add to basketslate satin
- add to basketcocoa satin
- add to basketmoss satin
- add to basketdamson satin
- add to basketsmoke satin
- add to basketframe grey satin
- add to basketlead satin
- add to basketearth satin
- add to basketburnt ash satin
- add to basketflint satin
- add to basketcharcoal satin
- add to basketraven satin
shades – gloss Coat
- add to basketcloud gloss
- add to basketalabaster gloss
- add to basketbone gloss
- add to basketbarley gloss
- add to basketdusk gloss
- add to basketceramic gloss
- add to basketcream gloss
- add to basketmineral gloss
- add to basketdove gloss
- add to basketparchment gloss
- add to basketoatmeal gloss
- add to basketmillstone gloss
- add to basketstone gloss
- add to basketclay gloss
- add to basketgrey moss gloss
- add to basketslate gloss
- add to basketcocoa gloss
- add to basketmoss gloss
- add to basketdamson gloss
- add to basketsmoke gloss
- add to basketframe grey gloss
- add to basketlead gloss
- add to basketearth gloss
- add to basketburnt ash gloss
- add to basketflint gloss
- add to basketcharcoal gloss
- add to basketraven gloss
metallics
High metallic fleck coatings with most available in Satin and Gloss sheen levels.
- add to basketplatinum satin
- add to basketchampagne satin
- add to basketgold satin
- add to basketcognac satin
- add to basketantique brass satin
- add to basketgunmetal satin
- add to basketbronzed satin
- add to basketpewter satin
- add to basketplatinium gloss
- add to basketchampagne gloss
- add to basketgold gloss
- add to basketcognac gloss
- add to basketantique brass gloss
- add to basketgunmetal gloss
- add to basketbronzed gloss
- add to basketpewter gloss
Anodic Metals
A flat metal colour group, with an anodised style surface texture.
- add to baskettwilight
- add to basketglow
- add to basketsky
- add to basketsunrise
- add to basketstorm
- add to basketglimmer
- add to basketSunset
- add to basketNight Sky
- add to basketMidnight
specialist finishes
Stainless tints
Brushed stainless steel, in subtle tinted hues gives and industrial aesthetic
- add to basketbrushed brass tint
Finishing Charge
A finishing charge will apply
Lead Time
Longer lead-times will apply
Availabilty Mio
Not available with French poles options
Availabilty Elevate
Brushed finishes not available with bends
- add to basketbrushed bronze tint
Finishing Charge
A finishing charge will apply
Lead Time
Longer lead-times will apply
Availabilty Mio
Not available with French poles options
Availabilty Elevate
Brushed finishes not available with bends
- add to basketbrushed carbon tint
Finishing Charge
A finishing charge will apply
Lead Time
Longer lead-times will apply
Availabilty Mio
Not available with French poles options
Availabilty Elevate
Brushed finishes not available with bends
fluid metal™
Leading edge technology allows authentic metal coats to be applied to any substrate, which can then be worked and aged for a truly luxurious result.
- add to basketold brass
Finishing Charge
A finishing charge will apply
Lead Time
Longer lead-times will apply
Fluid Metal
Fluid Metal finishes are hand produced, finish may vary
Fluid Metal finishes are supplied unlacquered and will tarnish over time, a clear lacquer may be applied on request as a custom finish
- add to basketlight bronze
Finishing Charge
A finishing charge will apply
Lead Time
Longer lead-times will apply
Fluid Metal
Fluid Metal finishes are hand produced, finish may vary
Fluid Metal finishes are supplied unlacquered and will tarnish over time, a clear lacquer may be applied on request as a custom finish
- add to basketbronze art
Finishing Charge
A finishing charge will apply
Lead Time
Longer lead-times will apply
Fluid Metal
Fluid Metal finishes are hand produced, finish may vary
Fluid Metal finishes are supplied unlacquered and will tarnish over time, a clear lacquer may be applied on request as a custom finish

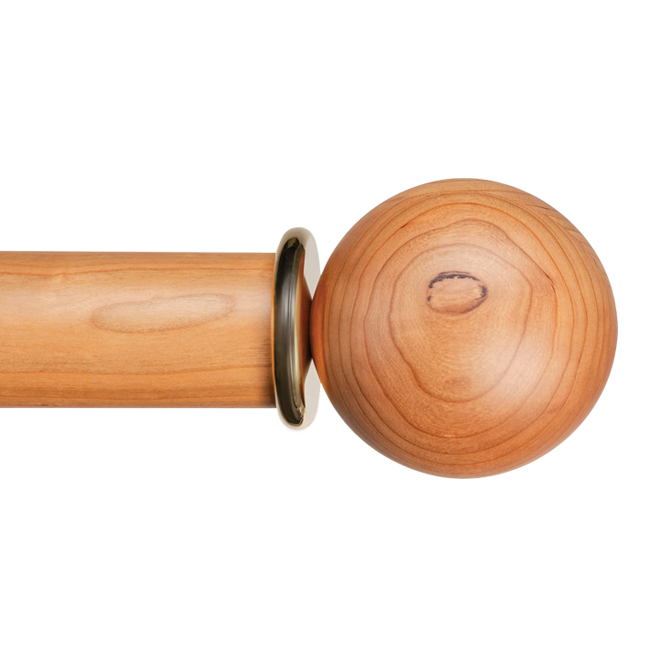

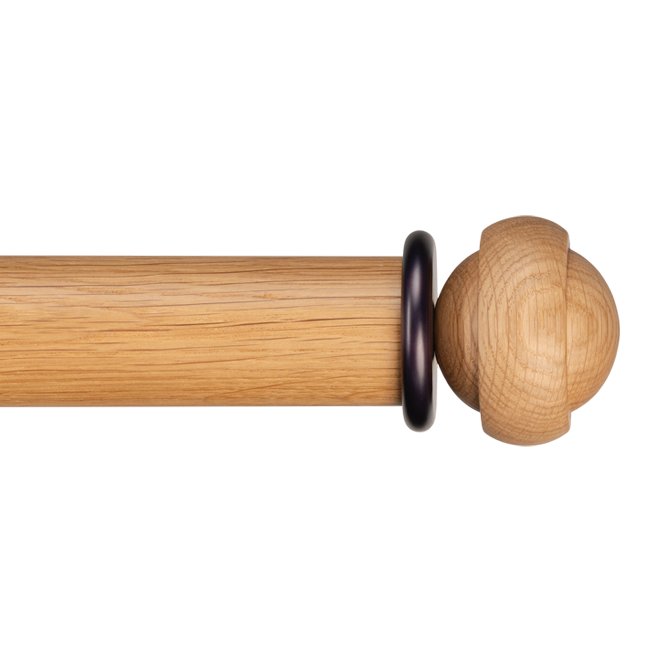

finials
brackets
Custom Brackets
Elevate can be customised to suit virtually any window.
Silent Gliss
5600
Straight poles maximum length 15 Metres (49ft)↔
Bespoke bay service Standard gliders and rollers & Wave® gliders and rollers
DC & AC hidden motor options
Touch and go manual operation
System allows manual operation during power failure
Quiet motors, noise level at 300mm (1’) <36dBA
Wireless remote control, app control or home automation integration
Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.
Motor Options
Control Options
gliding Options
Silent Gliss 5600 is available in 4 gliding options: Standard Gliders & Rollers, or Wave® Gliders & Rollers to be used with Wave® header tape.

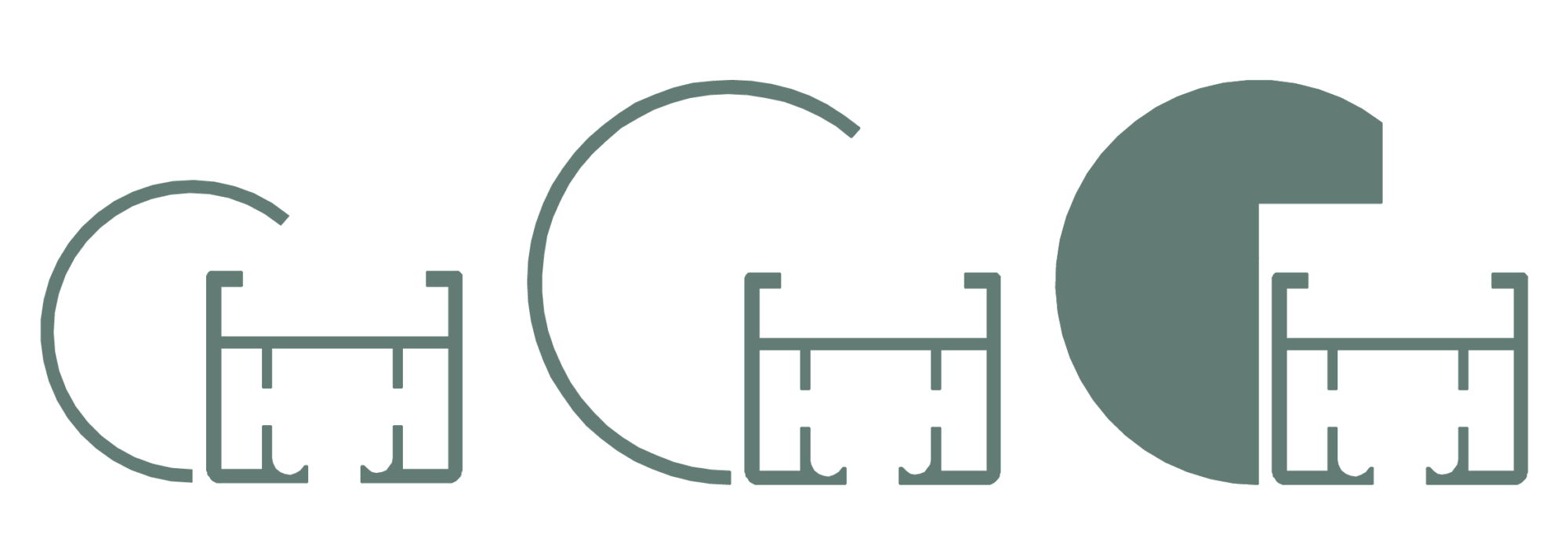

Somfy®
GLYDEA, IRISmo & Movelite
Straight poles maximum length 12 Metres (39ft)↔
Bespoke bay service
Standard roller, Ripple rollers and Ripplefold® rollers
Mains & Battery powered motor options
Touch and go manual operation System allows manual operation during power failure
Quiet motors, noise level at 1000mm (3’) <44dBA
Fully compatible with Somfy RTS

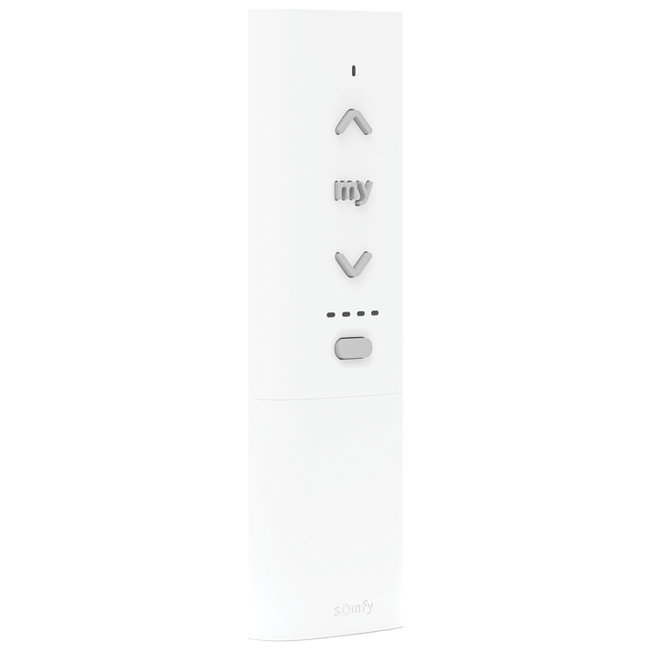

Wireless remote control, app control or home automation integration
Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.
Motor Options
Control Options
Gliding Options

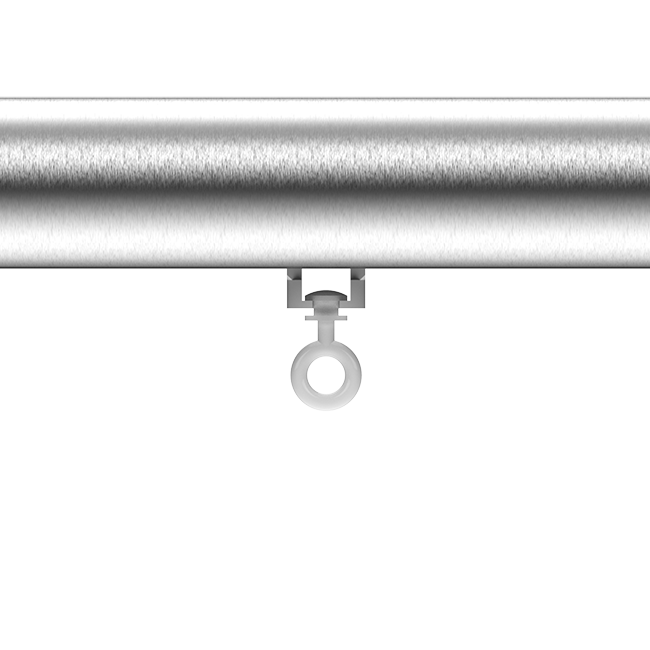

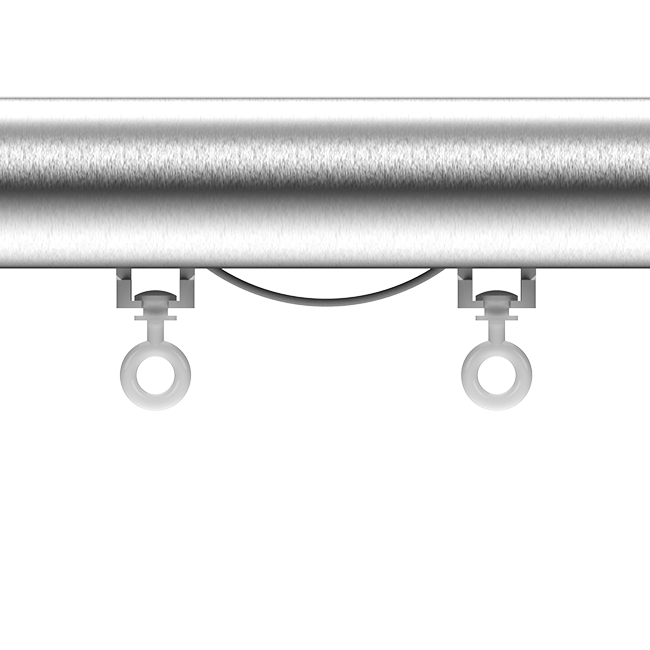

Somfy is available in 3 gliding options: Standard Rollers, Ripple Rollers, to be used with wave-style header tape. Or Ripplefold® Rollers to be used with Graber or Kirsch snap header tape.

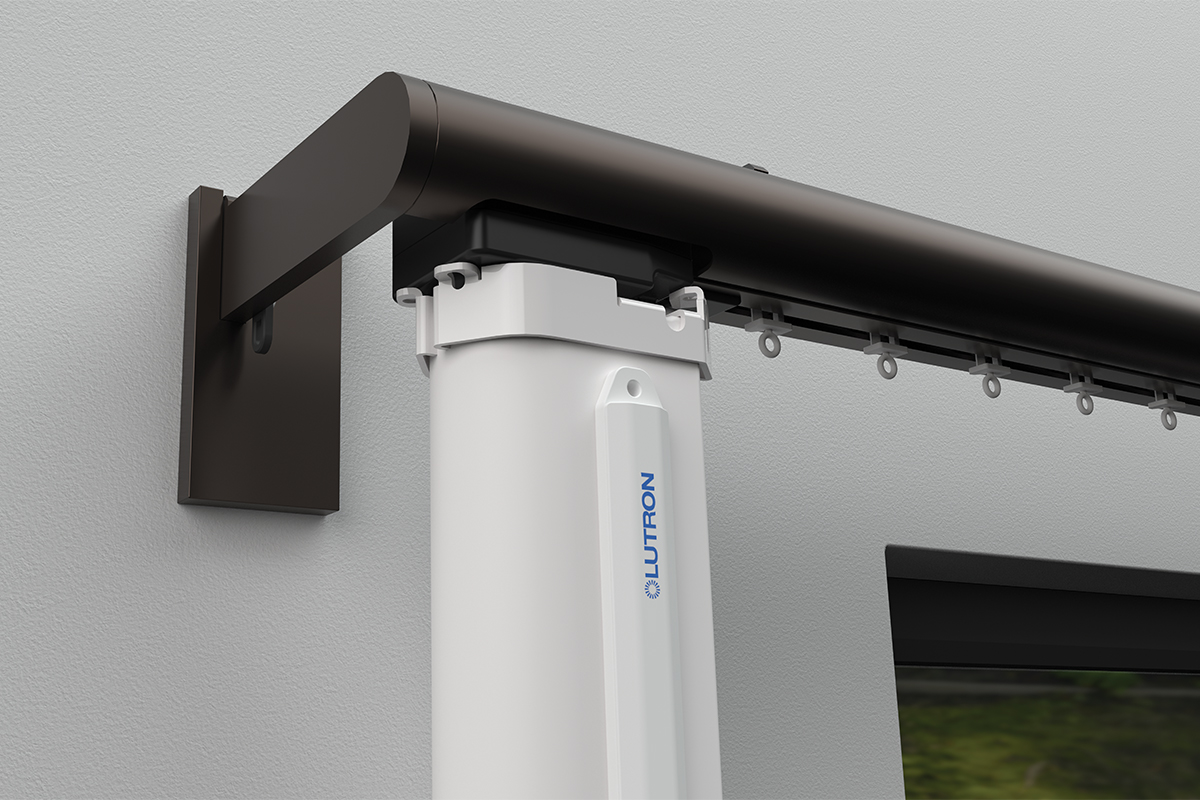

Lutron®
Sivoia
Straight poles maximum length 9 Metres (29.5ft)↔
Bespoke bay service

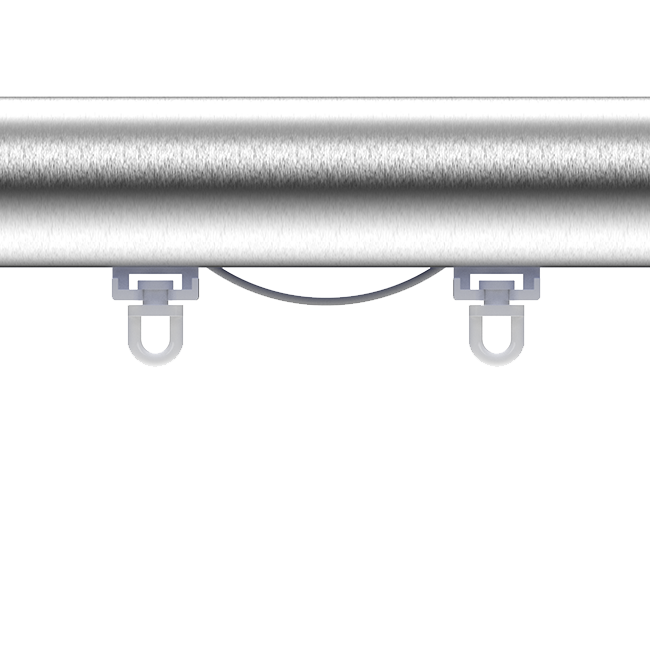

Standard roller and Ripplefold® rollers
Low voltage concealed motors
Three motor ratings for differing curtain weights
Quiet motors, noise level at 1000mm (3’) <44dBA
Fully compatible with Lutron® QS Home Automation systems
Wireless remote control, app control or home automation integration
Poles are cut and bent to suit individual requirements. When calculating the length of your pole, remember to allow tolerance beyond the width of the frame for the curtains to stack back to the edge of the window.
Maximum Coverpole length in one piece 2.9m (114”)↔. Poles exceeding the maximum length will be cut into equal parts unless otherwise specified. A joining bracket will need to be specified.
motor options
Control Options
Gliding Options
Lutron can be supplied with 2 gliding options: Standard Rollers, or Ripplefold® Rollers to be used with Graber or Kirsch snap header tape.
